Shenghua Steel Tape Armored Cables: Robust Underground & Duct Power Solutions for Heavy-Duty Applications

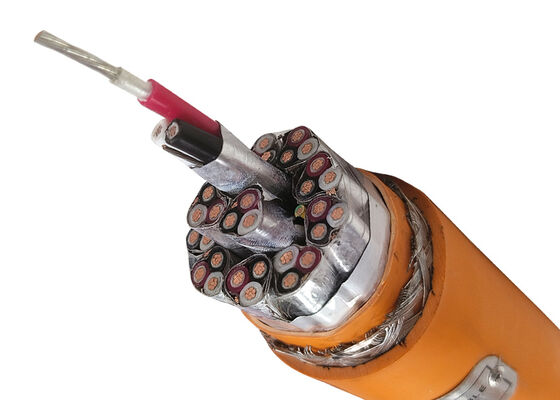

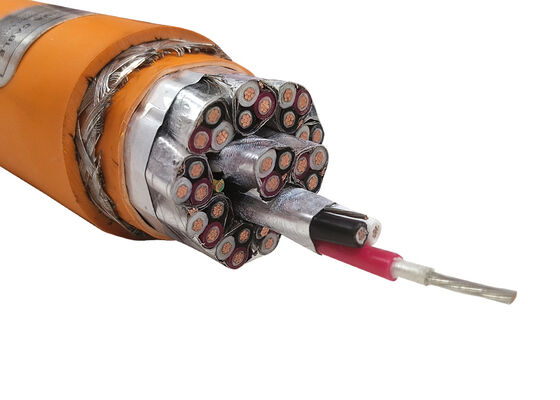

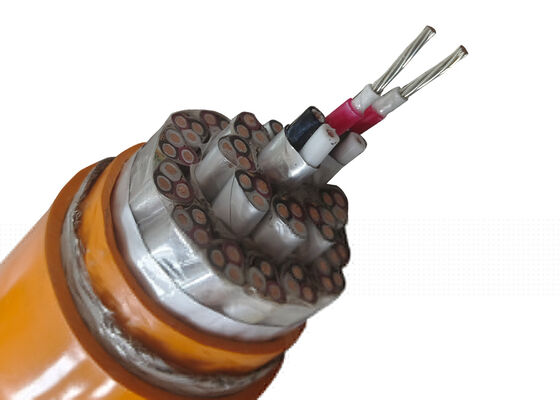

Large Image : Shenghua Steel Tape Armored Cables: Robust Underground & Duct Power Solutions for Heavy-Duty Applications

Product Details:

Certification:	ISO, CCC, CE, RoHS, VDE

Contact Now

Shenghua Steel Tape Armored Cables: Robust Underground & Duct Power Solutions for Heavy-Duty Applications

Description

Model NO.:	CU/XLPE/SWA/PVC-0.6/1KV 3x185+1x95 Mm2	Current:	AC Cable
Insulation Material:	XLPE	Sheath Material:	PVC
Material Shape:	Round Wire	Wire Core Material:	Bare Copper Wire
Model:	Yjv32	Brand:	Shanghai Shenghua
Armored:	Galvanized Steel Wire	Conductor:	Straned Copper
Insulation:	XLPE	Insulation Color:	Red,Black,Yellow,Green
Jacket:	PVC	Inner Sheath:	PVC
Rated Voltage:	600/1000V	Standard:	IEC60502
Bending Radius:	12X Cable O.D	Test Voltage:	3.5kv/5mins
Sample:	Free	Apply:	Power Station
Working Temp:	90 ºC	Certificate:	Kema
Dia Of Swa:	2.5mm	Transport Package:	500m/Reel
Specification:	3x185+1x95	Trademark:	SHAN CABLE
Origin:	Shanghai China	HS Code:	8544492100
Supply Ability:	9853km/Week

Shenghua Steel Tape Armored Cables: Robust Underground & Duct Power Solutions for Heavy-Duty Applications

When your power distribution project involves direct burial, duct networks, or environments with significant mechanical pressure and rodent risks, standard electric cables fall short. Shenghua delivers engineered resilience with its comprehensive range of Steel Tape Armored (STA) XLPE Insulated Power Cables. Designed for maximum protection and long-term reliability in the toughest conditions, our YJV22 series cables are the trusted choice for infrastructure, industrial, and utility applications.

Built for Durability: The Shenghua Armored Cable Advantage

Every Shenghua STA cable is constructed to provide an unmatched combination of electrical performance and physical protection, fully compliant with IEC 60502-1 and GB/T 12706.1.

Robust Core: Features a Class 2 compact stranded copper conductor (IEC 60228) for optimal conductivity and termination reliability.
Superior Insulation: Cross-Linked Polyethylene (XLPE) insulation allows a higher continuous operating temperature of 90°C, offering greater current-carrying capacity and thermal withstand than standard PVC.
Critical Armor Layer: The defining feature is the double galvanized steel tape (GSTA) armor. It provides exceptional resistance to crushing forces, impact, and rodent penetration, making it ideal for direct burial in ground, installation in ducts, and use in trenches.
Protective Sheath: A durable PVC (ST2) outer sheath ensures excellent resistance to abrasion, moisture, oils, and a wide range of environmental chemicals.

Engineered Specifications for Demanding Installations

Shenghua cables are specified by engineers who require certified performance and clear technical data for safe, reliable system design.

High Thermal Performance: Rated for continuous operation at 90°C, with emergency overload capability up to 130°C and short-circuit withstand of 250°C.
Rugged & Flexible: Designed for a minimum bending radius of 12x the cable's overall diameter, facilitating installation in constrained spaces.
Certified Safety & Quality: Manufactured to international standards (CE, RoHS) and holds CCC certification. Compliant with flame retardant standards (IEC 60332). We also produce to BS, DIN, ICEA, and other global standards upon request.

Technical Specifications: Your Guide to Precise Selection

Shenghua provides complete, transparent data for accurate specification. Below is a snapshot of our extensive product range.

Product Name	XLPE Insulated Steel Tape Armored PVC Sheathed Power Cable
Model / Standards	YJV22, CU/XLPE/GSTA/PVC, IEC 60502-1, GB/T 12706.1
Rated Voltage	0.6/1 kV
Max. Conductor Temp.	90°C (Normal), 130°C (Emergency)
Key Feature	Galvanized Steel Tape Armor (GSTA) for crush & rodent protection
Key Application	Direct burial, duct laying, industrial plants, infrastructure

Sample Data for Common Configurations (0.6/1kV):

Core & Size	Approx. Overall Diameter	Approx. Weight	Current Rating in Air*	Current Rating in Soil*
3x185+1x95 mm²	~62.0 mm	~8558 kg/km	375 A	390 A
4x120+1x70 mm²	~59.0 mm	~7544 kg/km	285 A	310 A
1x300 mm²	Refer to full table	Refer to full table	505 A	515 A

*Values are indicative. Complete ampacity tables are provided in our technical datasheet, based on standard installation conditions.

Why Choose Shenghua as Your Armored Cable Supplier?

Choosing Shenghua means partnering with a manufacturer committed to quality, reliability, and value. Our cables are precisely manufactured and supplied on sturdy wooden reels (500m or 1000m) to ensure perfect condition on arrival at your site or warehouse. We support your projects with full technical documentation and certification packages.

For your next underground, duct, or heavy-industrial power project, trust the robust protection of Shenghua Steel Tape Armored Cables.

Contact Shenghua today to request the full technical datasheet, a competitive quotation, or to discuss your specific project requirements.

Steel Wire Armored XLPE Insulated Electrical Powwr Cable CU/XLPE/SWA/PVC-0.6/1KV 3x185+1x95 mm2

Construction:

Conductor      : Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation      : XLPE(cross-linked polyethylene) rated at 90^OC
Inner covering : PVC
Armoring       : Galvanized steel wire
Sheath         : PVC type ST₂ to IEC 60502, black
Code Designation:
YJ: XLPE insulation
V: PVC sheath
32: Galvanized steel wire armoring
ZR: Flame resistant
Applications:
Apply to shafts,water and soil,able to bear the larger positive pressure.
Standards:
International: IEC 60502, IEC 60228, IEC 60332
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request
Technical Data
Rated voltage: 0.6 / 1 kV
Maximum Conductor Temperature: under normal (90^OC), emergency (130^OC) or short circuit no more than 5 s (250ºC) conditions.
Min. Ambient Temp.  0^OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 12 x cable O.D
Certificates:
CE, RoHS, CCC, KEMA and more others at request

Detail Specifications:

Nom. Cross-section of conductor	Strands No./Dia. Of Conductor	Insulation Thickness	Inner Covering Thickness	Dia. Of Armor Wire	Sheath Thickness	Approx. O.D.	Approx. Weight	Max. D.C Resistance of Conductor (20 ºC)	Testing Voltage A.C	Current Rating
mm²	pc/mm	mm			mm	(mm)	kg/km	Ω /km	kV/5min	In air (A)	In soil(A)
2 × 1.5	1/1.38	0.7	1.0	0.9	1.8	15.0	330	12.1	3.5	20	27
2 × 2.5	1/1.78	0.7	1.0	0.9	1.8	16.0	376	7.41	3.5	26	35
2 × 4	1/2.25	0.7	1.0	0.9	1.8	17.0	554	4.61	3.5	34	45
2 × 6	1/2.76	0.7	1.0	0.9	1.8	18.2	633	3.08	3.5	43	57
2 × 10	7/1.38	0.7	1.0	1.25	1.8	21.0	797	1.83	3.5	60	77
2 × 16	7/1.78	0.7	1.0	1.60	1.8	23.5	1124	1.15	3.5	83	105
2 × 25	7/2.14	0.9	1.0	1.6	1.8	26.0	1417	0.727	3.5	105	125
2 × 35	7/2.52	0.9	1.0	1.6	1.8	30.5	1694	0.524	3.5	125	155
2 × 50	10/2.52	1.0	1.0	1.6	1.8	27.0	1787	0.387	3.5	160	185
2 × 70	14/2.52	1.1	1.0	1.6	2	30.0	2181	0.268	3.5	200	225
2 × 95	19/2.52	1.1	1.2	1.6	2.1	34.0	2768	0.193	3.5	245	270
2 × 120	24/2.52	1.2	1.2	2.0	2.2	36.5	3500	0.153	3.5	285	310
2 × 150	30/2.52	1.4	1.2	2.0	2.4	42.0	4233	0.124	3.5	325	345
2 × 185	37/2.52	1.6	1.2	2.0	2.5	45.0	4979	0.0991	3.5	375	390
3 × 1.5	1/1.38	0.7	1.0	0.9	1.8	15.8	359	12.1	3.5	20	27
3 × 2.5	1/1.78	0.7	1.0	0.9	1.8	16.8	415	7.41	3.5	26	35
3 × 4	1/2.25	0.7	1.0	0.9	1.8	18.0	611	4.61	3.5	34	45
3 × 6	1/2.76	0.7	1.0	0.9	1.8	19.0	718	3.08	3.5	43	57
3 × 10	7/1.38	0.7	1.0	1.25	1.8	22.0	937	1.83	3.5	60	77
3 × 16	7/1.78	0.7	1.0	1.60	1.8	24.5	1318	1.15	3.5	83	105
3 × 25	7/2.14	0.9	1.0	1.6	1.8	29.2	1707	0.727	3.5	105	125
3 × 35	7/2.52	0.9	1.0	1.6	1.8	32.5	2071	0.524	3.5	125	155
3 × 50	10/2.52	1.0	1.0	1.6	1.9	33.0	2405	0.387	3.5	160	185
3 × 70	14/2.52	1.1	1.0	1.6	2.0	37.0	3084	0.268	3.5	200	225
3 × 95	19/2.52	1.1	1.2	1.6	2.1	43.0	4126	0.193	3.5	245	270
3 × 120	24/2.52	1.2	1.2	2.0	2.3	45.0	4901	0.153	3.5	285	310
3 × 150	30/2.52	1.4	1.4	2.0	2.4	51.0	6365	0.124	3.5	325	345
3 × 185	37/2.52	1.6	1.4	2.0	2.6	56.0	7555	0.0991	3.5	375	390
3 × 240	48/2.52	1.7	1.4	2.5	2.8	62.0	9284	0.0754	3.5	440	450
3 × 300	61/2.52	1.8	1.6	2.5	3.0	67.0	11226	0.0601	3.5	505	515
3 × 400	61/2.97	2.0	1.6	2.5	3.2	74.0	15714	0.0470	3.5	570	575
4 × 4	1/2.25	0.7	1.0	0.9	1.8	18.0	699	4.61	3.5	34	45
4 × 6	1/2.76	0.7	1.0	1.25	1.8	19.0	820	3.08	3.5	43	57
4 × 10	7/1.38	0.7	1.0	1.25	1.8	22.0	1233	1.83	3.5	60	77
4 × 16	7/1.78	0.7	1.0	1.6	1.8	24.5	1550	1.15	3.5	83	105
4 × 25	7/2.14	0.9	1.0	1.6	1.8	29.2	2036	0.727	3.5	105	125
4 × 35	7/2.52	0.9	1.0	2.0	1.9	32.5	2501	0.524	3.5	125	155
4 × 50	10/2.52	1.0	1.0	2.0	2.0	33.0	3064	0.387	3.5	160	185
4 × 70	14/2.52	1.1	1.0	2.0	2.1	37.0	3974	0.268	3.5	200	225
4 × 95	19/2.52	1.1	1.2	2.0	2.3	43.0	5032	0.193	3.5	245	270
4 × 120	24/2.52	1.2	1.2	2.5	2.5	45.0	6327	0.153	3.5	285	310
4 × 150	30/2.52	1.4	1.4	2.5	2.7	51.0	7765	0.124	3.5	325	345
4 × 185	37/2.52	1.6	1.4	2.5	2.8	56.0	9205	0.0991	3.5	375	390
4 × 240	48/2.52	1.7	1.4	2.5	3.0	62.0	11444	0.0754	3.5	440	450
4 × 300	61/2.52	1.8	1.6	2.5	3.2	67.0	13830	0.0601	3.5	505	515
4 × 400	61/2.97	2.0	1.6	3.15	3.5	74.0	19673	0.0470	3.5	570	575
5 × 4	1/2.25	0.7	1.0	1.25	1.8	20.0	783	4.61	3.5	34	45
5 × 6	1/2.76	0.7	1.0	1.25	1.8	22.4	946	3.08	3.5	43	57
5× 10	7/1.38	0.7	1.0	1.6	1.8	25.8	1398	1.83	3.5	60	77
5 × 16	7/1.78	0.7	1.0	1.6	1.8	29.0	1784	1.15	3.5	83	105
5 × 25	7/2.14	0.9	1.0	1.6	1.8	34.2	2378	0.727	3.5	105	125
5 × 35	7/2.52	0.9	1.0	1.6	1.9	37.8	3237	0.524	3.5	125	155
5× 50	10/2.52	1.0	1.2	2.0	2.1	43.2	3994	0.387	3.5	160	185
5× 70	14/2.52	1.1	1.2	2.0	2.3	49.0	5514	0.268	3.5	200	225
5× 95	19/2.52	1.1	1.4	2.5	2.5	55.0	6816	0.193	3.5	245	270
5 × 120	24/2.52	1.2	1.4	2.5	2.6	61.0	8174	0.153	3.5	285	310
5 × 150	30/2.52	1.4	1.4	2.5	2.8	67.8	9859	0.124	3.5	325	345
5 × 185	37/2.52	1.6	1.6	2.5	3.0	74.3	11805	0.0991	3.5	375	390
5 × 240	48/2.52	1.7	1.6	3.2	3.3	83.0	15706	0.0754	3.5	440	450
3 × 4+ 1 × 2.5	1/2.25+1/1.38	0.7	1.0	0.9	1.8	18.7	624	4.61	3.5	34	45
3 × 6+ 1 × 4	1/2.76+1/2.25	0.7	1.0	0.9	1.8	20.0	752	3.08	3.5	43	57
3 × 10+ 1 × 6	7/1.38+1/2.8	0.7	1.0	1.25	1.8	23.3	1154	1.83	3.5	60	77
3 × 16+ 1 × 10	7/1.78+7/1.38	0.7	1.0	1.25	1.8	25.8	1456	1.15	3.5	83	105
3 × 25+ 1 × 16	7/2.14+7/1.78	0.9	1.0	1.6	1.8	30.0	1905	0.727	3.5	105	125
3 × 35+ 1 × 16	7/2.52+7/1.78	0.9	1.0	1.6	1.8	33.0	2259	0.524	3.5	125	155
3 × 50+ 1 × 25	10/2.52+7/2.14	1.0	1.0	1.6	1.9	35.5	2705	0.387	3.5	160	185
3 × 70+ 1 × 35	14/2.52+7/2.52	1.1	1.0	2.0	2.0	41.0	3729	0.268	3.5	200	225
3 × 95+ 1 × 50	19/2.52+10/2.52	1.1	1.2	2.0	2.1	46.0	4732	0.193	3.5	245	270
3 × 120+ 1 × 70	24/2.52+14/2.52	1.2	1.2	2.0	2.3	51.0	6071	0.153	3.5	285	310
3 × 150+ 1 × 70	30/2.52+14/2.52	1.4	1.4	2.5	2.4	56.5	7198	0.124	3.5	325	345
3 × 185+ 1 × 95	37/2.52+19/2.52	1.6	1.4	2.5	2.6	62.0	8558	0.0991	3.5	375	390
3 × 240+ 1 × 120	48/2.52+24/2.52	1.7	1.4	2.5	2.8	68.0	10580	0.0754	3.5	440	450
3 × 300+ 1 × 150	61/2.52+30/2.52	1.8	1.6	2.5	3.0	75.0	12742	0.0601	3.5	505	515
3 × 4+ 2 × 2.5	1/2.25+1/1.38	0.7	1.0	0.9	1.8	18.7	735	4.61	3.5	34	45
3 × 6+ 2 × 4	1/2.76+1/2.25	0.7	1.0	1.25	1.8	21.0	879	3.08	3.5	43	57
3 × 10+ 2 × 6	7/1.38+1/2.8	0.7	1.0	1.25	1.8	24.2	1263	1.83	3.5	60	77
3 × 16+ 2 × 10	7/1.78+7/1.38	0.7	1.0	1.6	1.8	27.5	1616	1.15	3.5	83	105
3 × 25+ 2 × 16	7/2.14+7/1.78	0.9	1.0	1.6	1.8	32.5	2142	0.727	3.5	105	125
3 × 35+ 2 × 16	7/2.52+7/1.78	0.9	1.0	1.6	1.9	35.5	2492	0.524	3.5	125	155
3 × 50+ 2 × 25	10/2.52+7/2.14	1.0	1.0	2.0	2.2	40.0	3408	0.387	3.5	160	185
3 × 70+ 2 × 35	14/2.52+7/2.52	1.1	1.0	2.0	2.4	45.6	4338	0.268	3.5	200	225
3 × 95+ 2 × 50	19/2.52+10/2.52	1.1	1.2	2.0	2.6	50.0	5374	0.193	3.5	245	270
3 × 120+ 2 × 70	24/2.52+14/2.52	1.2	1.2	2.5	2.7	56.9	7145	0.153	3.5	285	310
3 × 150+ 2 × 70	30/2.52+14/2.52	1.4	1.4	2.5	2.9	62.4	8076	0.124	3.5	325	345
3 × 185+ 2 × 95	37/2.52+19/2.52	1.6	1.4	2.5	3.0	67.6	9779	0.0991	3.5	375	390
3 × 240+ 2 × 120	48/2.52+24/2.52	1.7	1.4	2.5	3.2	73.8	12024	0.0754	3.5	440	450
3 × 300+ 2 × 150	61/2.52+30/2.52	1.8	1.6	3.15	3.4	83.0	14366	0.0601	3.5	505	515
4 × 4+ 1 × 2.5	1/2.25+1/1.38	0.7	1.0	0.9	1.8	20.0	752	4.61	3.5	34	45
4 × 6+ 1 × 4	1/2.76+1/2.25	0.7	1.0	1.25	1.8	21.5	913	3.08	3.5	43	57
4 × 10+ 1 × 6	7/1.38+1/2.8	0.7	1.0	1.25	1.8	25.0	1323	1.83	3.5	60	77
4 × 16+ 1 × 10	7/1.78+7/1.38	0.7	1.0	1.6	1.8	28.6	1691	1.15	3.5	83	105
4 × 25+ 1 × 16	7/2.14+7/1.78	0.9	1.0	1.6	1.8	33.5	2256	0.727	3.5	105	125
4 × 35+ 1 × 16	7/2.52+7/1.78	0.9	1.0	1.6	1.9	36.0	2957	0.524	3.5	125	155
4 × 50+ 1 × 25	10/2.52+7/2.14	1.0	1.2	2.0	2.2	42.0	3643	0.387	3.5	160	185
4 × 70+ 1 × 35	14/2.52+7/2.52	1.1	1.2	2.0	2.4	47.0	4614	0.268	3.5	200	225
4 × 95+ 1 × 50	19/2.52+10/2.52	1.1	1.2	2.0	2.6	51.2	6140	0.193	3.5	245	270
4 × 120+ 1 × 70	24/2.52+14/2.52	1.2	1.4	2.5	2.8	59.0	7544	0.153	3.5	285	310
4 × 150+ 1 × 70	30/2.52+14/2.52	1.4	1.4	2.5	3.0	64.0	8733	0.124	3.5	325	345
4 × 185+ 1 × 95	37/2.52+19/2.52	1.6	1.6	2.5	3.1	71.0	10597	0.0991	3.5	375	390
4 × 240+ 1 × 120	48/2.52+24/2.52	1.7	1.6	2.5	3.3	78.0	13029	0.0754	3.5	440	450
4 × 300+ 1 × 150	61/2.52+30/2.52	1.8	1.6	3.15	3.5	88.0	17172	0.0601	3.5	505	515

Packing and Packing Photo

500m/wooden drum or 1000m/wooden drum.

Shenghua Steel Tape Armored Cables: Robust Underground & Duct Power Solutions for Heavy-Duty Applications 0

Contact Details

Shanghai Shenghua Cable Group Co., LTD.,

Contact Person: Ms. Mayling Zhao

Tel: +86 15901866124

Fax: 86--58179888

Other Products
