Shenghua SWA Power Cables: Armored Reliability for Demanding Industrial Applications

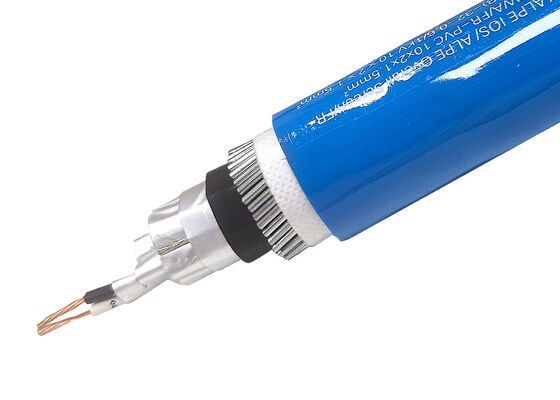

Large Image : Shenghua SWA Power Cables: Armored Reliability for Demanding Industrial Applications

Product Details:

Certification:	ISO, CCC, CE, RoHS, VDE

Contact Now

Shenghua SWA Power Cables: Armored Reliability for Demanding Industrial Applications

Description

Model NO.:	CU/XLPE/SWA/PVC-0.6/1KV 3x185+1x95 Mm2	Current:	AC Cable
Insulation Material:	XLPE	Sheath Material:	PVC
Material Shape:	Round Wire	Wire Core Material:	Bare Copper Wire
Model:	Yjv32	Brand:	Shanghai Shenghua
Armored:	Galvanized Steel Wire	Conductor:	Straned Copper
Insulation:	XLPE	Insulation Color:	Red,Black,Yellow,Green
Jacket:	PVC	Inner Sheath:	PVC
Rated Voltage:	600/1000V	Standard:	IEC60502
Bending Radius:	12X Cable O.D	Test Voltage:	3.5kv/5mins
Sample:	Free	Apply:	Power Station
Working Temp:	90 ºC	Certificate:	Kema
Dia Of Swa:	2.5mm	Transport Package:	500m/Reel
Specification:	3x185+1x95	Trademark:	SHAN CABLE
Origin:	Shanghai China	HS Code:	8544492100
Supply Ability:	9853km/Week

Shenghua SWA Power Cables: Armored Reliability for Demanding Industrial Applications

In industrial plants, mining operations, underground distribution, and any environment where mechanical stress is a constant threat, standard electric cables are not enough. Protection is paramount. Shenghua delivers robust, engineered solutions with its range of Steel Wire Armored (SWA) XLPE Insulated Power Cables. Designed to withstand crushing forces, rodent attack, and harsh installations, our CU/XLPE/SWA/PVC cables provide unwavering reliability for critical power infrastructure.

Built to Endure: The Shenghua Armored Construction

Every layer of a Shenghua SWA cable is designed for maximum durability and long-term performance, compliant with IEC 60502 and GB/T 12706.1.

Conductor: Compact stranded copper to IEC 60228 Class 2 ensures efficient power transmission and excellent connectivity.
Insulation: Cross-Linked Polyethylene (XLPE) offers superior thermal stability, allowing a higher continuous operating temperature of 90°C and enhanced short-circuit performance compared to PVC.
Armor: The key protective element—a layer of Galvanized Steel Wire (GSW). This armor provides exceptional mechanical protection against impact, crushing, and tensile stresses, making the cable suitable for direct burial, in cable trays, and exposed installations where unprotected cables would fail.
Sheath: A tough, black PVC (Type ST2) outer sheath provides overall environmental, chemical, and abrasion resistance.

Engineered for Performance & Compliance

Shenghua armored cables are specified by engineers who cannot compromise on safety or specifications.

Higher Current Capacity & Thermal Resilience: XLPE insulation allows for a 90°C normal rating, 130°C emergency rating, and 250°C short-circuit rating, enabling higher ampacity and safety margins.
Rugged Installation: With a minimum bending radius of 12 x overall diameter and capability to be installed in ducts, direct in ground, or in trenches, even in demanding conditions (shafts, water, soil with positive pressure).
Internationally Recognized: Certified to CE, RoHS, CCC, and KEMA standards. We can also manufacture to BS, DIN, ICEA, and other major international standards upon request, ensuring global project suitability.

Technical Specifications at a Glance: Your Data for Confident Design

Shenghua provides complete, transparent data for precise system design and comparison.

Product Name	Steel Wire Armored XLPE Insulated Power Cable
Model / Standards	YJV32, CU/XLPE/SWA/PVC, IEC 60502, GB/T 12706.1
Rated Voltage	0.6/1 kV
Max. Operating Temp.	90°C (Normal), 130°C (Emergency)
Key Feature	Galvanized Steel Wire Armor for mechanical protection
Min. Bending Radius	12 x Cable Overall Diameter
Typical Application	Industrial plants, direct burial, mining, infrastructure

Sample Ampacity Data (Rated 0.6/1kV, XLPE, Laid in Air & Duct):

Core & Size	Approx. Overall Diameter	Approx. Weight	Current Rating in Air	Current Rating in Soil
3x185+1x95 mm²	56.0 mm	8558 kg/km	375 A	390 A
4x120+1x70 mm²	59.0 mm	7544 kg/km	285 A	310 A
1x300 mm²	36.4 mm	4072 kg/km	505 A	515 A

(Complete technical data for the full range, including 2-core to 5-core configurations, is available in our detailed spec sheets.)

Why Source Armored Cables from Shenghua?

Choosing Shenghua means partnering with a supplier committed to quality, consistency, and support. Our armored cables are packed securely on wooden reels (500m/1000m) for safe global shipment. We provide full certification packages and technical documentation to streamline your procurement and compliance processes.

For projects that demand toughness, choose the reliable armor of Shenghua. Power your most demanding applications with confidence.

Contact Shenghua today for pricing, complete specification tables, and custom quotation requests for your project or wholesale needs.

Steel Wire Armored XLPE Insulated Electrical Powwr Cable CU/XLPE/SWA/PVC-0.6/1KV 3x185+1x95 mm2

Construction:

Conductor      : Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation      : XLPE(cross-linked polyethylene) rated at 90 OC
Inner covering : PVC
Armoring       : Galvanized steel wire
Sheath         : PVC type ST2 to IEC 60502, black
Code Designation:
YJ: XLPE insulation
V: PVC sheath
32: Galvanized steel wire armoring
ZR: Flame resistant
Applications:
Apply to shafts,water and soil,able to bear the larger positive pressure.
Standards:
International: IEC 60502, IEC 60228, IEC 60332
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request
Technical Data
Rated voltage: 0.6 / 1 kV
Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250ºC) conditions.
Min. Ambient Temp.  0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 12 x cable O.D
Certificates:
CE, RoHS, CCC, KEMA and more others at request

Detail Specifications:

Nom. Cross-section of conductor	Strands No./Dia. Of Conductor	Insulation Thickness	Inner Covering Thickness	Dia. Of Armor Wire	Sheath Thickness	Approx. O.D.	Approx. Weight	Max. D.C Resistance of Conductor (20 ºC)	Testing Voltage A.C	Current Rating
mm2	pc/mm	mm			mm	(mm)	kg/km	Ω /km	kV/5min	In air (A)	In soil(A)
2 × 1.5	1/1.38	0.7	1.0	0.9	1.8	15.0	330	12.1	3.5	20	27
2 × 2.5	1/1.78	0.7	1.0	0.9	1.8	16.0	376	7.41	3.5	26	35
2 × 4	1/2.25	0.7	1.0	0.9	1.8	17.0	554	4.61	3.5	34	45
2 × 6	1/2.76	0.7	1.0	0.9	1.8	18.2	633	3.08	3.5	43	57
2 × 10	7/1.38	0.7	1.0	1.25	1.8	21.0	797	1.83	3.5	60	77
2 × 16	7/1.78	0.7	1.0	1.60	1.8	23.5	1124	1.15	3.5	83	105
2 × 25	7/2.14	0.9	1.0	1.6	1.8	26.0	1417	0.727	3.5	105	125
2 × 35	7/2.52	0.9	1.0	1.6	1.8	30.5	1694	0.524	3.5	125	155
2 × 50	10/2.52	1.0	1.0	1.6	1.8	27.0	1787	0.387	3.5	160	185
2 × 70	14/2.52	1.1	1.0	1.6	2	30.0	2181	0.268	3.5	200	225
2 × 95	19/2.52	1.1	1.2	1.6	2.1	34.0	2768	0.193	3.5	245	270
2 × 120	24/2.52	1.2	1.2	2.0	2.2	36.5	3500	0.153	3.5	285	310
2 × 150	30/2.52	1.4	1.2	2.0	2.4	42.0	4233	0.124	3.5	325	345
2 × 185	37/2.52	1.6	1.2	2.0	2.5	45.0	4979	0.0991	3.5	375	390
3 × 1.5	1/1.38	0.7	1.0	0.9	1.8	15.8	359	12.1	3.5	20	27
3 × 2.5	1/1.78	0.7	1.0	0.9	1.8	16.8	415	7.41	3.5	26	35
3 × 4	1/2.25	0.7	1.0	0.9	1.8	18.0	611	4.61	3.5	34	45
3 × 6	1/2.76	0.7	1.0	0.9	1.8	19.0	718	3.08	3.5	43	57
3 × 10	7/1.38	0.7	1.0	1.25	1.8	22.0	937	1.83	3.5	60	77
3 × 16	7/1.78	0.7	1.0	1.60	1.8	24.5	1318	1.15	3.5	83	105
3 × 25	7/2.14	0.9	1.0	1.6	1.8	29.2	1707	0.727	3.5	105	125
3 × 35	7/2.52	0.9	1.0	1.6	1.8	32.5	2071	0.524	3.5	125	155
3 × 50	10/2.52	1.0	1.0	1.6	1.9	33.0	2405	0.387	3.5	160	185
3 × 70	14/2.52	1.1	1.0	1.6	2.0	37.0	3084	0.268	3.5	200	225
3 × 95	19/2.52	1.1	1.2	1.6	2.1	43.0	4126	0.193	3.5	245	270
3 × 120	24/2.52	1.2	1.2	2.0	2.3	45.0	4901	0.153	3.5	285	310
3 × 150	30/2.52	1.4	1.4	2.0	2.4	51.0	6365	0.124	3.5	325	345
3 × 185	37/2.52	1.6	1.4	2.0	2.6	56.0	7555	0.0991	3.5	375	390
3 × 240	48/2.52	1.7	1.4	2.5	2.8	62.0	9284	0.0754	3.5	440	450
3 × 300	61/2.52	1.8	1.6	2.5	3.0	67.0	11226	0.0601	3.5	505	515
3 × 400	61/2.97	2.0	1.6	2.5	3.2	74.0	15714	0.0470	3.5	570	575
4 × 4	1/2.25	0.7	1.0	0.9	1.8	18.0	699	4.61	3.5	34	45
4 × 6	1/2.76	0.7	1.0	1.25	1.8	19.0	820	3.08	3.5	43	57
4 × 10	7/1.38	0.7	1.0	1.25	1.8	22.0	1233	1.83	3.5	60	77
4 × 16	7/1.78	0.7	1.0	1.6	1.8	24.5	1550	1.15	3.5	83	105
4 × 25	7/2.14	0.9	1.0	1.6	1.8	29.2	2036	0.727	3.5	105	125
4 × 35	7/2.52	0.9	1.0	2.0	1.9	32.5	2501	0.524	3.5	125	155
4 × 50	10/2.52	1.0	1.0	2.0	2.0	33.0	3064	0.387	3.5	160	185
4 × 70	14/2.52	1.1	1.0	2.0	2.1	37.0	3974	0.268	3.5	200	225
4 × 95	19/2.52	1.1	1.2	2.0	2.3	43.0	5032	0.193	3.5	245	270
4 × 120	24/2.52	1.2	1.2	2.5	2.5	45.0	6327	0.153	3.5	285	310
4 × 150	30/2.52	1.4	1.4	2.5	2.7	51.0	7765	0.124	3.5	325	345
4 × 185	37/2.52	1.6	1.4	2.5	2.8	56.0	9205	0.0991	3.5	375	390
4 × 240	48/2.52	1.7	1.4	2.5	3.0	62.0	11444	0.0754	3.5	440	450
4 × 300	61/2.52	1.8	1.6	2.5	3.2	67.0	13830	0.0601	3.5	505	515
4 × 400	61/2.97	2.0	1.6	3.15	3.5	74.0	19673	0.0470	3.5	570	575
5 × 4	1/2.25	0.7	1.0	1.25	1.8	20.0	783	4.61	3.5	34	45
5 × 6	1/2.76	0.7	1.0	1.25	1.8	22.4	946	3.08	3.5	43	57
5× 10	7/1.38	0.7	1.0	1.6	1.8	25.8	1398	1.83	3.5	60	77
5 × 16	7/1.78	0.7	1.0	1.6	1.8	29.0	1784	1.15	3.5	83	105
5 × 25	7/2.14	0.9	1.0	1.6	1.8	34.2	2378	0.727	3.5	105	125
5 × 35	7/2.52	0.9	1.0	1.6	1.9	37.8	3237	0.524	3.5	125	155
5× 50	10/2.52	1.0	1.2	2.0	2.1	43.2	3994	0.387	3.5	160	185
5× 70	14/2.52	1.1	1.2	2.0	2.3	49.0	5514	0.268	3.5	200	225
5× 95	19/2.52	1.1	1.4	2.5	2.5	55.0	6816	0.193	3.5	245	270
5 × 120	24/2.52	1.2	1.4	2.5	2.6	61.0	8174	0.153	3.5	285	310
5 × 150	30/2.52	1.4	1.4	2.5	2.8	67.8	9859	0.124	3.5	325	345
5 × 185	37/2.52	1.6	1.6	2.5	3.0	74.3	11805	0.0991	3.5	375	390
5 × 240	48/2.52	1.7	1.6	3.2	3.3	83.0	15706	0.0754	3.5	440	450
3 × 4+ 1 × 2.5	1/2.25+1/1.38	0.7	1.0	0.9	1.8	18.7	624	4.61	3.5	34	45
3 × 6+ 1 × 4	1/2.76+1/2.25	0.7	1.0	0.9	1.8	20.0	752	3.08	3.5	43	57
3 × 10+ 1 × 6	7/1.38+1/2.8	0.7	1.0	1.25	1.8	23.3	1154	1.83	3.5	60	77
3 × 16+ 1 × 10	7/1.78+7/1.38	0.7	1.0	1.25	1.8	25.8	1456	1.15	3.5	83	105
3 × 25+ 1 × 16	7/2.14+7/1.78	0.9	1.0	1.6	1.8	30.0	1905	0.727	3.5	105	125
3 × 35+ 1 × 16	7/2.52+7/1.78	0.9	1.0	1.6	1.8	33.0	2259	0.524	3.5	125	155
3 × 50+ 1 × 25	10/2.52+7/2.14	1.0	1.0	1.6	1.9	35.5	2705	0.387	3.5	160	185
3 × 70+ 1 × 35	14/2.52+7/2.52	1.1	1.0	2.0	2.0	41.0	3729	0.268	3.5	200	225
3 × 95+ 1 × 50	19/2.52+10/2.52	1.1	1.2	2.0	2.1	46.0	4732	0.193	3.5	245	270
3 × 120+ 1 × 70	24/2.52+14/2.52	1.2	1.2	2.0	2.3	51.0	6071	0.153	3.5	285	310
3 × 150+ 1 × 70	30/2.52+14/2.52	1.4	1.4	2.5	2.4	56.5	7198	0.124	3.5	325	345
3 × 185+ 1 × 95	37/2.52+19/2.52	1.6	1.4	2.5	2.6	62.0	8558	0.0991	3.5	375	390
3 × 240+ 1 × 120	48/2.52+24/2.52	1.7	1.4	2.5	2.8	68.0	10580	0.0754	3.5	440	450
3 × 300+ 1 × 150	61/2.52+30/2.52	1.8	1.6	2.5	3.0	75.0	12742	0.0601	3.5	505	515
3 × 4+ 2 × 2.5	1/2.25+1/1.38	0.7	1.0	0.9	1.8	18.7	735	4.61	3.5	34	45
3 × 6+ 2 × 4	1/2.76+1/2.25	0.7	1.0	1.25	1.8	21.0	879	3.08	3.5	43	57
3 × 10+ 2 × 6	7/1.38+1/2.8	0.7	1.0	1.25	1.8	24.2	1263	1.83	3.5	60	77
3 × 16+ 2 × 10	7/1.78+7/1.38	0.7	1.0	1.6	1.8	27.5	1616	1.15	3.5	83	105
3 × 25+ 2 × 16	7/2.14+7/1.78	0.9	1.0	1.6	1.8	32.5	2142	0.727	3.5	105	125
3 × 35+ 2 × 16	7/2.52+7/1.78	0.9	1.0	1.6	1.9	35.5	2492	0.524	3.5	125	155
3 × 50+ 2 × 25	10/2.52+7/2.14	1.0	1.0	2.0	2.2	40.0	3408	0.387	3.5	160	185
3 × 70+ 2 × 35	14/2.52+7/2.52	1.1	1.0	2.0	2.4	45.6	4338	0.268	3.5	200	225
3 × 95+ 2 × 50	19/2.52+10/2.52	1.1	1.2	2.0	2.6	50.0	5374	0.193	3.5	245	270
3 × 120+ 2 × 70	24/2.52+14/2.52	1.2	1.2	2.5	2.7	56.9	7145	0.153	3.5	285	310
3 × 150+ 2 × 70	30/2.52+14/2.52	1.4	1.4	2.5	2.9	62.4	8076	0.124	3.5	325	345
3 × 185+ 2 × 95	37/2.52+19/2.52	1.6	1.4	2.5	3.0	67.6	9779	0.0991	3.5	375	390
3 × 240+ 2 × 120	48/2.52+24/2.52	1.7	1.4	2.5	3.2	73.8	12024	0.0754	3.5	440	450
3 × 300+ 2 × 150	61/2.52+30/2.52	1.8	1.6	3.15	3.4	83.0	14366	0.0601	3.5	505	515
4 × 4+ 1 × 2.5	1/2.25+1/1.38	0.7	1.0	0.9	1.8	20.0	752	4.61	3.5	34	45
4 × 6+ 1 × 4	1/2.76+1/2.25	0.7	1.0	1.25	1.8	21.5	913	3.08	3.5	43	57
4 × 10+ 1 × 6	7/1.38+1/2.8	0.7	1.0	1.25	1.8	25.0	1323	1.83	3.5	60	77
4 × 16+ 1 × 10	7/1.78+7/1.38	0.7	1.0	1.6	1.8	28.6	1691	1.15	3.5	83	105
4 × 25+ 1 × 16	7/2.14+7/1.78	0.9	1.0	1.6	1.8	33.5	2256	0.727	3.5	105	125
4 × 35+ 1 × 16	7/2.52+7/1.78	0.9	1.0	1.6	1.9	36.0	2957	0.524	3.5	125	155
4 × 50+ 1 × 25	10/2.52+7/2.14	1.0	1.2	2.0	2.2	42.0	3643	0.387	3.5	160	185
4 × 70+ 1 × 35	14/2.52+7/2.52	1.1	1.2	2.0	2.4	47.0	4614	0.268	3.5	200	225
4 × 95+ 1 × 50	19/2.52+10/2.52	1.1	1.2	2.0	2.6	51.2	6140	0.193	3.5	245	270
4 × 120+ 1 × 70	24/2.52+14/2.52	1.2	1.4	2.5	2.8	59.0	7544	0.153	3.5	285	310
4 × 150+ 1 × 70	30/2.52+14/2.52	1.4	1.4	2.5	3.0	64.0	8733	0.124	3.5	325	345
4 × 185+ 1 × 95	37/2.52+19/2.52	1.6	1.6	2.5	3.1	71.0	10597	0.0991	3.5	375	390
4 × 240+ 1 × 120	48/2.52+24/2.52	1.7	1.6	2.5	3.3	78.0	13029	0.0754	3.5	440	450
4 × 300+ 1 × 150	61/2.52+30/2.52	1.8	1.6	3.15	3.5	88.0	17172	0.0601	3.5	505	515

Packing and Packing Photo

500m/wooden drum or 1000m/wooden drum.

Shenghua SWA Power Cables: Armored Reliability for Demanding Industrial Applications 0

Contact Details

Shanghai Shenghua Cable Group Co., LTD.,

Contact Person: Ms. Mayling Zhao

Tel: +86 15901866124

Fax: 86--58179888

Other Products
