Shenghua YJY Cables: The Low Smoke Zero Halogen Power Solution for Enhanced Safety

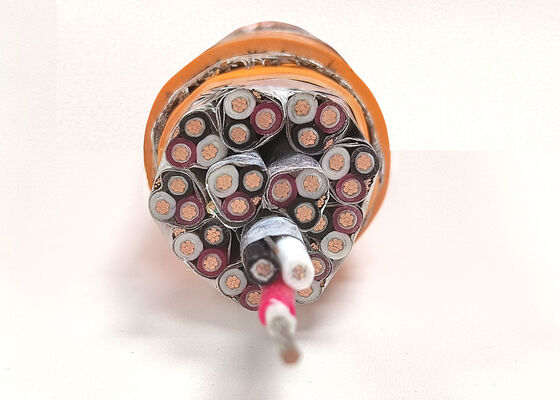

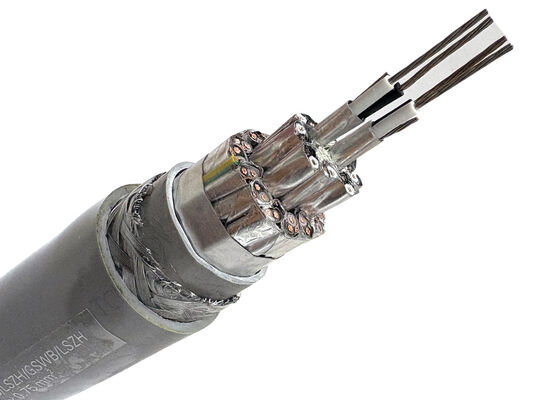

Large Image : Shenghua YJY Cables: The Low Smoke Zero Halogen Power Solution for Enhanced Safety

Product Details:

Certification:	ISO, CCC, CE, RoHS

Contact Now

Shenghua YJY Cables: The Low Smoke Zero Halogen Power Solution for Enhanced Safety

Description

Model NO.:	YJY YJV WDZ-YJY WDZ-YJV	Current:	DC & AC
Insulation Material:	XLPE	Sheath Material:	PE
Material Shape:	Round Wire	Wire Core Material:	Bare Copper Wire
Model:	Yjy Yjv Wdz-Yjy Wdz-Yjv	Brand:	Xinxin
Color:	White/Black	MOQ:	500m
Conductor:	Copper	Insulation:	XLPE
Sheath:	PE	Transport Package:	Wooden Steel Drum
Specification:	1.11.10.98m	Trademark:	Shanghai Shenghua Cable Group
Origin:	Shanghai, China	HS Code:	8544492100
Supply Ability:	100000

Shenghua YJY Cables: The Low Smoke Zero Halogen Power Solution for Enhanced Safety

In environments where safety is non-negotiable—high-rise buildings, hospitals, transportation hubs, and critical infrastructure—the choice of electric cable directly impacts life safety and asset protection. Shenghua presents its YJY Flame Retardant Power Cable, an advanced Low Smoke Zero Halogen (LSOH) cable engineered to provide superior performance and exceptional safety during extreme conditions. It’s the intelligent choice for modern installations where clean, low-toxicity emissions are paramount.

Engineered for Safety: The Shenghua YJY Construction

Shenghua’s commitment to safety is built into every layer of this cable, adhering to stringent international standards like IEC 60331, IEC 60754, and GB/T 18380.3.

Conductor: Reliable circular stranded copper (IEC 60228 Class 2) ensures efficient and stable conductivity.
Insulation: Cross-Linked Polyethylene (XLPE) provides excellent electrical properties, high thermal resistance (allowing a 90°C normal operating temperature), and superior aging resistance compared to standard PVC.
Sheath & Inner Covering: The LSOH (Low Smoke Zero Halogen) compound is the core safety feature. In the event of fire, it minimizes the emission of dense smoke and corrosive/toxic halogenated gases, facilitating safer evacuation and reducing secondary damage to sensitive equipment.

Key Features & Compliance: Your Assurance of Quality

Shenghua’s YJY cables are designed to meet the most demanding global project specifications and safety codes.

Certified Safety: Compliant with IEC 60331 for fire resistance, IEC 60754 for halogen-free gas emission, and holding CE, CCC, and KEMA certifications for broad market acceptance.
Superior Thermal Performance: Rated for continuous operation at 90°C, with short-circuit withstand up to 250°C, offering a higher safety margin and current-carrying capacity.
Critical Applications: Ideally suited for installations requiring enhanced fire safety:
- Commercial & Public Buildings (Skyscrapers, Hospitals, Theaters, Shopping Malls)
- Mass Transit Systems (Metro Tunnels, Railway Stations, Airports)
- Petrochemical & Industrial Facilities
- Data Centers and Communication Hubs

Reliable Technical Specifications for Professional Design

Engineers and specifiers can trust the detailed, certified performance data of Shenghua cables.

Product Name	YJY XLPE Insulation LSOH Sheathed Flame Retardant Power Cable
Model / Standards	CU/XLPE/LSOH, IEC 60502, IEC 60331, IEC 60754, GB/T 12706.1, CE, CCC, KEMA
Rated Voltage	0.6/1 kV
Max. Operating Temp.	90°C
Flame Retardant	Yes (LSOH Sheath)
Min. Bending Radius	Single-core: 20 x (D+d) ±5% / Multi-core: 15 x (D+d) ±5%
Key Safety Feature	Low Smoke, Zero Halogen emission for safer evacuation and reduced corrosion.

Why Partner with Shenghua for Your Critical Projects?

Beyond the product, you choose a partner dedicated to reliability and performance. Shenghua provides comprehensive technical support, documentation, and a product range built to meet international standards like BS, DIN, and ICEA upon request. Our cables ensure that your power infrastructure is not only efficient but also contributes to a higher standard of building and public safety.

Choose Shenghua YJY Cables. Power your critical projects with confidence, safety, and innovation. Contact us today for specifications, certifications, and quotation.

Product Name:YJY XLPE insulation LSOH Sheathed Flame retardant Power Cable

Description:
CU/XLPE/LSOH, IEC 60331
IEC 60502, IEC 60227, IEC 60331, IEC 601034, IEC60754 GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001
CE, CCC, KEMA
Constructions
Conductor: Circular stranded copper conductor, conforms to IEC 60228 class 2
Insulation: XLPE/A
Inner Covering: LSOH
Sheath: LSOH , black
Note: Insulation color as per standards or customer requirement

Applications
Used for tall building, Hospital, Theatre, Power station, Metro Tunnel or Petrochemical Industry or other special place required for low smoke , zero halogen clean and safe cable.
Standards
International: IEC 60502, IEC 60227 IEC 60331, IEC 601034
China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001
Other standards such as BS,DIN and ICEA upon request

Technical data
Rated voltage: 0.6-KV
Max. Conductor Temp.: normal (90ºC), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250ºC )
Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0ºC
Min. Bending Radius: single core cable 20(d+D)±5%
Multi-core cable 15(d+D)±5%

Product Name	YJY XLPE Insulation LSOH Sheathed Flame Retardant Power Cable
Model/Standard	CU/XLPE/LSOH, IEC 60331, IEC 60502, IEC 60227, IEC 60331, IEC 601034, IEC 60754, GB/T 12706-91, GB306.1-2001, GB/T18380.3-2001, CE, CCC, KEMA
Conductor Material	Circular stranded copper conductor, conforms to IEC 60228 class 2
Insulation Material	XLPE/A
Inner Covering	LSOH
Sheath Material	LSOH, black
Insulation Color	As per standards or customer requirement
Rated Voltage	0.6 kV
Max. Conductor Temperature	Normal: 90°C; Short circuit (5 seconds): Maximum conductor temperature not exceeding 250°C
Min. Ambient Temperature	Cable should be preheated if ambient temperature is below 0°C
Min. Bending Radius	Single-core cable: 20(d+D)±5%; Multi-core cable: 15(d+D)±5%
