Key Applications of YJY Flame Retardant LSOH Power Cable

Large Image : Key Applications of YJY Flame Retardant LSOH Power Cable

Product Details:

Brand Name:	Shenghua
Certification:	ISO, CCC, CE, RoHS

Payment & Shipping Terms:

Price:	Negotiable
Delivery Time:	30
Payment Terms:	T/T, L/C, D/P
Supply Ability:	1 million pcs

Contact Now

Key Applications of YJY Flame Retardant LSOH Power Cable

Description

Model NO.:	YJY YJV WDZ-YJY WDZ-YJV	Current:	DC & AC
Insulation Material:	XLPE	Sheath Material:	PE
Material Shape:	Round Wire	Wire Core Material:	Bare Copper Wire
Model:	Yjy Yjv Wdz-Yjy Wdz-Yjv	Brand:	Xinxin
Color:	White/Black	MOQ:	500m
Conductor:	Copper	Insulation:	XLPE
Sheath:	PE	Transport Package:	Wooden Steel Drum
Specification:	1.11.10.98m	Trademark:	Shanghai Shenghua Cable Group
Origin:	Shanghai, China	HS Code:	8544492100
Supply Ability:	100000

Selecting the right power cable is a critical safety decision. In environments where people congregate or where operational continuity is vital, a cable's performance during a fire is as important as its electrical efficiency. The YJY XLPE Insulation LSOH Sheathed Flame Retardant Power Cable is specifically engineered for these high-stakes applications. This article explores the crucial settings where this cable makes a life-saving difference.

Engineered for Life Safety: The YJY Cable Advantage

Before delving into its applications, it's essential to understand what makes the YJY cable the preferred choice for engineers and safety consultants:

Flame Retardant: Inhibits the spread of fire along cable runs.
Low Smoke Zero Halogen (LSOH) Sheath: Drastically reduces smoke density and eliminates toxic gas emission when exposed to fire.
Robust Construction: Features a stranded copper conductor and XLPE insulation for high temperature resistance (up to 90°C) and long-term reliability.
Global Compliance: Certifications include CE, CCC, KEMA, and adherence to IEC and GB standards.

Critical Applications of the YJY Flame Retardant Cable

1. High-Rise Buildings and Skyscrapers

In tall buildings, vertical cable shafts can act as chimneys, potentially spreading fire between floors. The YJY cable’s flame-retardant properties are crucial for containing a fire. More importantly, its LSOH sheath ensures that escape routes, such as stairwells and lobbies, remain relatively free of toxic smoke, facilitating safer evacuation for occupants and safer access for firefighters.

2. Healthcare Facilities: Hospitals and Clinics

Hospitals house vulnerable individuals who cannot be evacuated quickly. The reliability of life-support systems and emergency power is critical. YJY cables provide a clean and safe electrical backbone. In the event of an incident, the zero-halogen feature prevents the release of corrosive acids that can destroy sensitive medical equipment, ensuring critical infrastructure remains operational.

3. Public Assembly Spaces: Theatres, Airports, and Shopping Malls

Where large crowds gather, panic can be as dangerous as fire itself. Dense smoke from burning cables can lead to disorientation and stampedes. By emitting minimal smoke, the YJY cable maintains visibility for a safer, more orderly evacuation. Its compliance with international safety standards makes it a trustworthy choice for public projects.

4. Critical Infrastructure: Power Stations and Petrochemical Plants

In industrial settings like power plants and petrochemical facilities, a cable fire can lead to catastrophic operational failure, environmental damage, and immense financial loss. The YJY cable provides robust performance under normal high-temperature conditions and, during a short-circuit event (withstanding up to 250°C for 5 seconds), ensures circuit integrity to keep safety systems online.

5. Underground Transport: Metro and Rail Tunnels

Tunnels are confined spaces with limited escape options. The combination of flame retardancy and low smoke emission is non-negotiable here. YJY cables are ideal for metro systems because they help prevent fire from spreading along the tunnel and ensure that passengers and staff are not overcome by toxic fumes, which is vital for survival and rescue operations.

Why Specify YJY for Your Project?

Choosing the YJY cable is more than a technical specification; it's a commitment to safety. It demonstrates foresight in protecting both human life and valuable assets. Whether you are an architect designing a new hospital wing, a project manager for a metro extension, or an engineer in a petrochemical plant, this cable meets the highest demands.

Description:
CU/XLPE/LSOH, IEC 60331
IEC 60502, IEC 60227, IEC 60331, IEC 601034, IEC60754 GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001
CE, CCC, KEMA

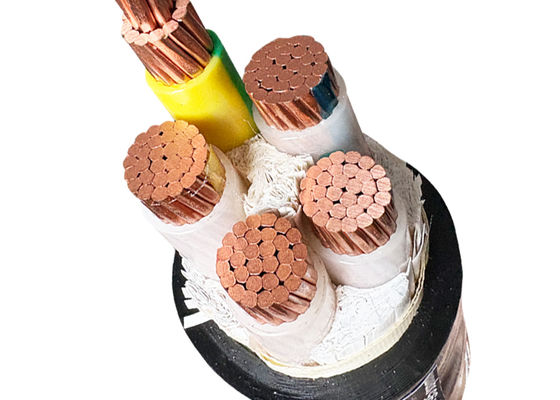

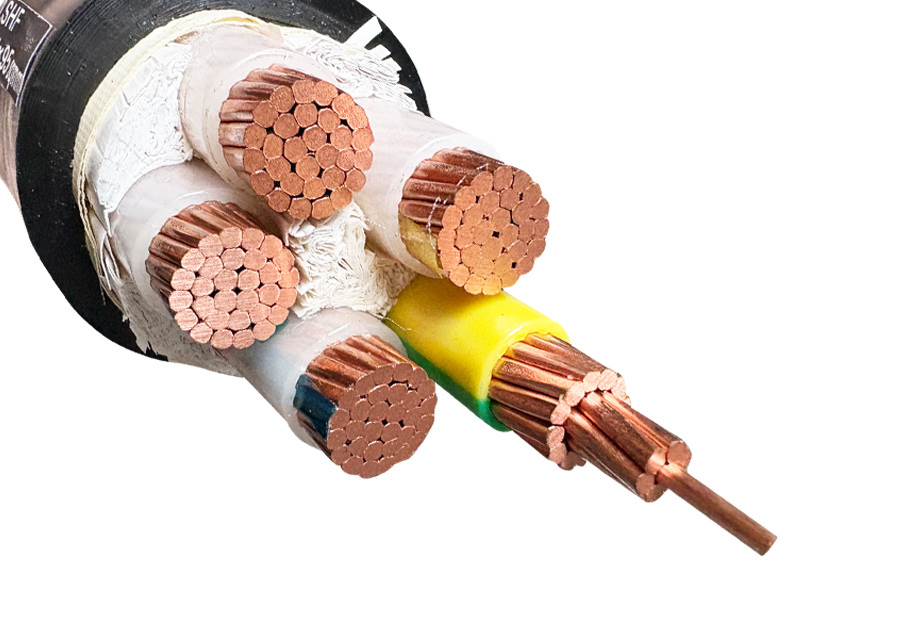

Constructions
Conductor: Circular stranded copper conductor, conforms to IEC 60228 class 2
Insulation: XLPE/A
Inner Covering: LSOH
Sheath: LSOH , black
Note: Insulation color as per standards or customer requirement

Applications
Used for tall building, Hospital, Theatre, Power station, Metro Tunnel or Petrochemical Industry or other special place required for low smoke , zero halogen clean and safe cable.
Standards
International: IEC 60502, IEC 60227 IEC 60331, IEC 601034
China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001
Other standards such as BS,DIN and ICEA upon request

Technical data
Rated voltage: 0.6-KV
Max. Conductor Temp.: normal (90ºC), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250ºC )
Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0ºC
Min. Bending Radius: single core cable 20(d+D)±5%
Multi-core cable 15(d+D)±5%

Product Name	YJY XLPE Insulation LSOH Sheathed Flame Retardant Power Cable
Model/Standard	CU/XLPE/LSOH, IEC 60331, IEC 60502, IEC 60227, IEC 60331, IEC 601034, IEC 60754, GB/T 12706-91, GB306.1-2001, GB/T18380.3-2001, CE, CCC, KEMA
Conductor Material	Circular stranded copper conductor, conforms to IEC 60228 class 2
Insulation Material	XLPE/A
Inner Covering	LSOH
Sheath Material	LSOH, black
Insulation Color	As per standards or customer requirement
Rated Voltage	0.6 kV
Max. Conductor Temperature	Normal: 90°C; Short circuit (5 seconds): Maximum conductor temperature not exceeding 250°C
Min. Ambient Temperature	Cable should be preheated if ambient temperature is below 0°C
Min. Bending Radius	Single-core cable: 20(d+D)±5%; Multi-core cable: 15(d+D)±5%
