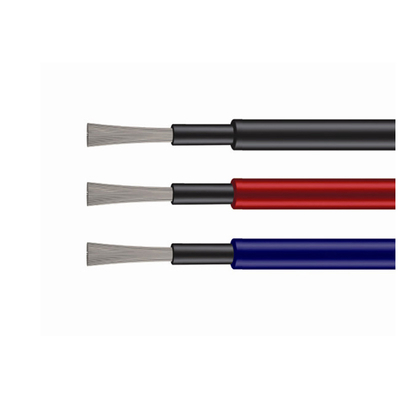

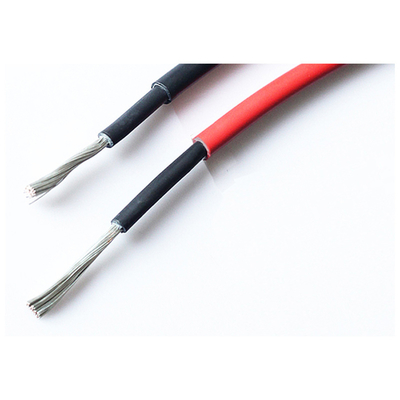

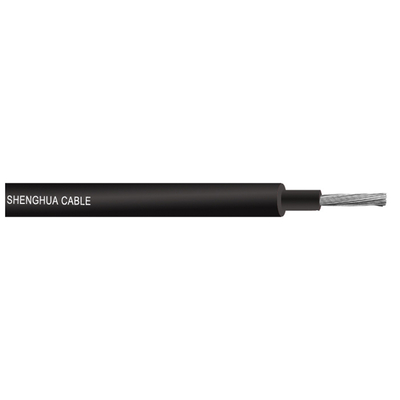

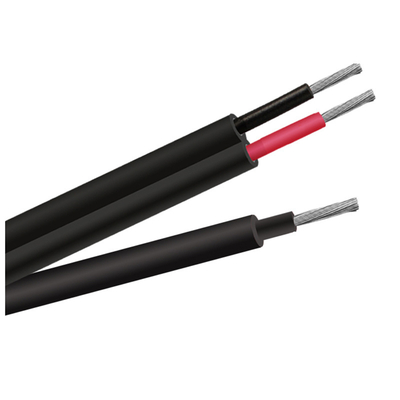

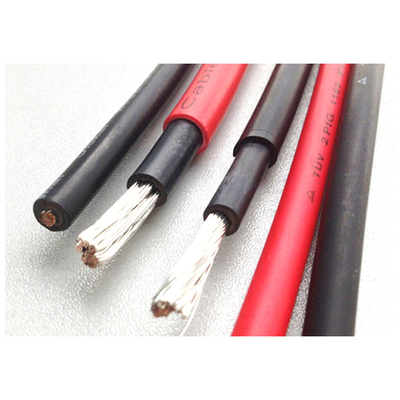

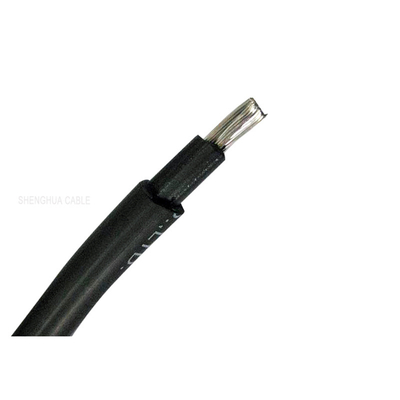

TUV H1z2z2-K DC PV Solar Cable 2.5mm 4mm 6mm 10mm 16mm2

XLPO Insulation andJacket Single Core Solar Cable meet the varying needs of the solar industry,Applications include connecttion to module junction boxes,required cable routing in balance system integration rated 1000V.

Conductor:Fully annealed flexible tinned copper class5,VDE 0295/IEC60228
Insulation/Jacket Material :XLPO.

Norminal Voltage :AC U0/U=600/1000V,DC 1000/1800V
Temperature Rating:-40 degree to 90 degree.
Bending Radius :5xO.D

		Technical Specifications
Customer	Valuable customer			Sheet  NO		S0518001
Standard	EN50618			Construction Figure
Construction	H1Z2Z2-K 1X4mm2
Construction Item	Units	4.0mm2
Construction	mm	52/0.295±0.01
Material	---	Tinned copper wire
O.D	mm	2.40
Insulation
Material	---	XLPO
Avg.Thick	mm	0.70
Min.Thick	mm	0.50		Electric Characters
O.D	mm	3.95±0.15		Voltage rating DC1500V
Color	---	Black		Temperature rating:-40~90ºC
Twisted Pair				Dielectric strength:AC-6.5kV/5min
Ins.Color	---	/		Spark test:AC-10kV/In the air
Lay of Strand	mm	/		Conductor resistance:5.09ΩKM Max at20ºC
O.D	mm	/		Weathering/UV-resistance:720h,No cracking
Assemble				Thermal endurance properties: 25 Years
Filling	---	/		Physical Properties
Lapping	---	/
Drain.wire	---	/		Elongation of unaged values(%):≥125%
Covering				Insulation Tensile strength of unaged values (N/mm2):≥6.5;Jacket  Tensile strength of unaged values (N/mm2):≥8.0
Material	---	/
Avg.Thick	mm	/
Min.Thick	mm	/		Aged in a full draft circulating air oven: 150±2.0ºC
O.D	mm	/		Elongation of  After aging(%):<=30%
Color	---	/		Tensile strength of  After aging:<=30%
Armour				Ozone resistance:25±2ºC*24h  No cracking
Construction	' ---	/		Cold bend test:  -40±2ºC*16h       No cracking
Coverage	%	/		Cold impact test:-40ºC*16h/1000g;100mm  No cracking
Shield				Flame test:IEC 60332
Material/	---	/			Shanghai shenghua Cable Co.,Ltd
Construction	---	/
Coverage	%	/
Jacket
Material	---	XLPO
Avg.Thick	mm	0.80
Min.Thick	mm	0.60
O.D/	mm	5.55±0.2		APPROVED		CHECKED	DESIGNED
Color/	' ---	Black				/	WKB
Surface/	---	/
Marking				APPROVED BY THE CLIENT
TÜV  DC1500V  H1Z2Z2-K 1×4.0mm2 Shanghai  shenghua Cable  Co., Ltd
